How to install Flytec 2011-5 RC Boat remote control?

How to installation Flytec 2011-5 RC Boat remote control?

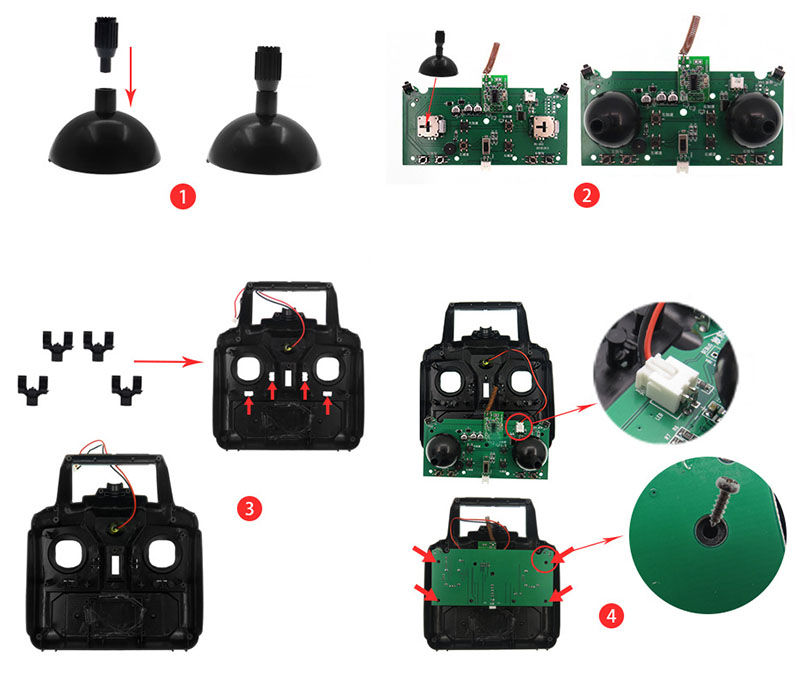

1,Take out the cap and install the remote control lever on the cap
2,Insert the small hole on the back of the cap into the corresponding position of the remote control lever on the circuit board
3,Install the button onto the top cover of the remote control housing,
4,Insert the power cord of the indicator light on the top shell into the circuit board and secure it with screws

How to Flytec 2011-5 RC Boat Installation the remote control?

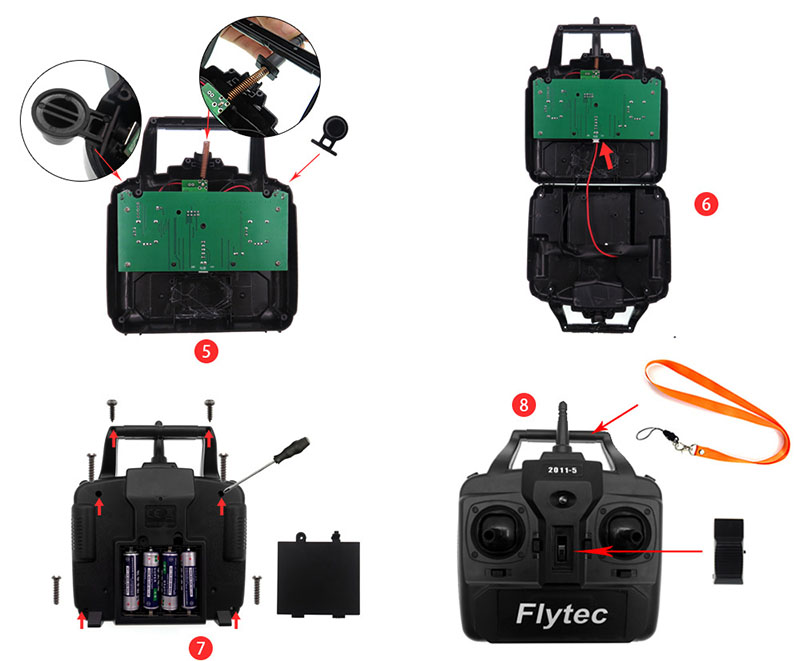

5, Install LED light button and antenna
6, Insert the power cord of the bottom cover onto the circuit board
7, Fix the top and bottom covers with screws and install four No. 5 batteries
8, Install the power switch and hanging rope on the top cover

How to Flytec 2011-5 RC Boat Installation the remote control?
