HUBSAN ACE PRO REFINED standard version RC Drone Details review
HUBSAN ACE PRO REFINED Big Step ForwardExplore a New Era
Features
1/1.3 Inch CMOS Big CMOS Always Win
F/1.85 Large Aperture
2.4um Pixels
4K HDR (Dual Native ISO)48MP
Independent Imaging System FineRGB
Liberated from overseas patent, HUBSAN ACE PRO Refined adapts an independent imaging algorithm, unlock a Billion Colors and capture every details, what you shoot restores exactly what you see
Fourth Generation of Flight Control is More Stable and Smart
The fourth generation flight control technology further improves the learning and adaptability to environmental interference, especially the redundant error correction ability of GPS data, and greatly improves the flight stability of aircraft in complex electromagnetic environment.
Second Generation Time-lapse Algorithm
Time-lapse decide by gimbal, flight control and image processing units. And second generation time-lapse algorithm greatly improves the stability of photography by blend them in real-time.
Night Mode
The night mode designed for dark. It optimized noise reduction and drag reduction.
The dark never Looks so bright and penetrate.
The mode will automatically turn on in dim light environment without extra settings.
Super Night Mode
Super Night Mode is essentially an upgraded version of night mode, which optimizes the video or photo shooting effect in dark environment. The night photography effect is better and provides four option settings for users to enjoy more shooting flexibility according to their needs.
Starlight Photography
Still complaining that the drone can't get a clear picture at night? Starlight algorithm allows you to take detailed photos like daylight even in faint starlight.
Vertical shooting follow short
video trends
You can switch landscape
mode to vertical shooting with
bracket tool any time!
Vertical Shooting follow the trends.
Let overhead shooting shock your eyes.
Second Generation

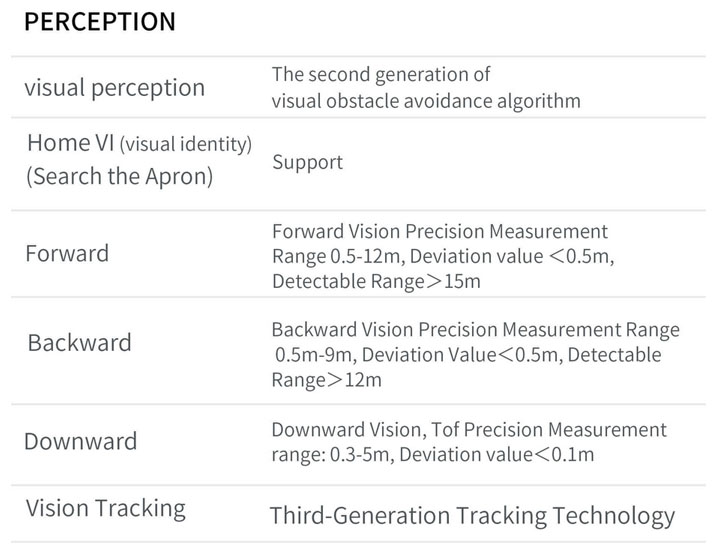

Obstacle Sensing
You Don't Need to Calibrate for Obstacle Avoidance Often!
The second generation visual obstacle avoidance (svoa 2.0), improves the self correction ability of the whole visual system, and improves the reliability and stability of obstacle avoidance through the dynamic fusion of multi-channel data.
ATVT 3.5Upgrade Visual following
● Night following
● Parallel following
● Orbit following
● Drifting
SyncLeas 4.0 Image Tranmission
Makes the Image Transmission
More Clearly
Strong Anti-jamming Escort your flight!
ACE PRO Refined using Syncreas 4.0 wireless digital image transmission technology and improve the error correction and decoding algorithm in Gaussian channel background. It optimize the disconnected retrans-mission mechanism and further improve the stability of image transmission, Now image transmission distance can reach 15km in ideal environment.
Support 4G technology
4G modules need to be purchased separately
4G technology can improve the wireless link stability of aircraft when flying at low altitude.
SyncLeas4.0 will cooperate with 4G network to ensure that the aircraft can cover more abundant flight scenes. If SyncLeas4.0 image transmis-sion is interfered or blocked, the system will automatically activate 4G link to ensure that your control of aircraft is not interrupted.
The Forth Generation Gimbal Technology, Realize Your Creative Shooting Steadily
Improve the data fusion depth of flight control attitude and gimbal attitude, and reduce the gimbal angle jitter from previous ± 0.015°to ± 0.005 °, further reducing the rippling probability in extreme attitude
Hubsan Third Generation Battery Enjoys 12 Months Warranty The battery compatible with ACE SE Refined's
With hblog data memory function, many information including struggling mode can be directly recorded to the battery. Each battery supports three times Struggling
Endurance hard power Long life battery 4S 4200mAh
Hubsan ACE PRO Refined adopts excellent aerodynamic performance and excellent battery performance, the maximum flight time of standard battery can reach 37 minutes, giving you enough blank time to shoot and create. You can also choose the long endurance smart battery which longest flight time can reach 45 minutes, so that you can free from power anxiety and totally throw yourself in flight.

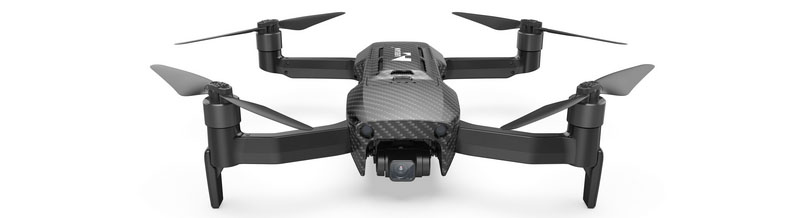

Looks cool and feels textured!
Fitting carbon fiber material, bring you more noble beatiful details and more textured experience.
Blockbuster Mode
One key to realize Blockbuster creation!
All shooting operation, cut and video synthesis will finish by aircraft itself!
You can enjoy the view freely!
HUBSAN ACE PRO REFINED
|
AIRCRAFT
|
|
|
Color
|
Black
|
|
Size
|
Expand:229.55*178*73.6mm
Folding:118.7*172.5*67.6mm
|
|
Diagonal wheelbase
|
260mm
|
|
Maximum current
|
32A
|
|
Take off weight
|
600g
|
|
Hover accuracy
|
Indoor: vertical±0.1m,horizontal±0.1m
Outdoor: height<7m, vertical<Height*0.02m
Horizontal<Height*0.02m
Height>7m Vertical±0.1m
Horizontal±0.5m
|
|
Maximum ascending velocity
|
3 m/s (N) 4 m/s(S) 1m/s(F)
|
|
Maximum descending velocity
|
1.5m/s(N) 3m/s(S) 1m/s(F)
|
|
Maximum horizontal flight speed
|
Normal mode:8m/s(N, No wind at sea level)
Sports mode:16m/s(S, No wind at sea level)
Movie mode:1m/s(S, No wind at sea level)
|
|
Maximum take-off altitude
|
5000 meters
|
|
Maximum anti-wind capability
|
Grade 7 wind
|
|
Maximum tilt angle
|
30° (S) 20° (N) 20° (F)
|
|
Satellite navigation system
|
GPS/GLONASS/Beidou
|
|
Duration of flight
|
(Standard battery)
Maximum flight time:33minutes( slow cruise)
Hovering Time: 37minutes
(Measured under normal temperature and no wind
Resistance, with video off and hovering at a height of 2 to 4 meters)
Long life battery)
Maximum flight time:40minutes( slow cruise)Hovering Time: 45minutes
(Measured under normal temperature and no wind
Resistance, with video off and hovering at a height of 2 to 4 meters)
|
|
POWER SYSTEM
|
|
|
Propeller
|
Model: Folding propeller diameter 143mm
Colour: Black
|
|
ESC
|
Digital ESC: Brushless 20A x4
|
|
BATTERY
|
|
|
Category
|
Li-ion battery 4S
|
|
Capacity
|
3200mAh(Standard)
4200mAh (Long Duration)
|
|
Nominal voltage
|
14.4V
|
|
Charging voltage imitation
|
16.8V
|
|
Discharge limitation
|
8C
|
|
Charging time
|
120 minutes
|
|
Battery weight
|
230g(Standard)
300g(Long duration)
|
|
Working temperature
|
-5°~-40°
|
|
Charging environment temperature
|
0℃～40℃
|
|
Smart battery balance
|
Support
|
|
Battery Smart buckle
|
Support
|
|
Low power protection
|
Support
|
|
Struggle mode
|
Support
|
|
Electrical resistance monitoring
|
Support
|
|
HBLog
|
Support
|
|
Smart diagnos
|
Support
|
|
Remote Lock
|
Support
|
|
Online Upgrade
|
Support
|
|
Bulging replacement
|
Support
|
|
CAMERA
|
|
|
CMOS sensor
|
1/1.3 inch CMOS Image sensor
2.4um mixed large pixel
|
|
Lens specifications
|
FOV 84°
Aperture f/1.85
EFL:6.8mm
Focus point 5m to infinity
Distortion<1.5%
|
|
Photo format
|
JPEG/DNG
|
|
Maximum photo size
|
8000x6000
|
|
Video resolution
|
4K:3840×2160@30fps
2.7K:2720×1530@30/60fps
FHD:1920×1080@/30/60fps
|
|
Video format
|
MP4(H.265/HEVC)
|
|
Video bitrate
|
100Mbps-200Mbps
|
|
HDR(Dual Native IsO)
|
Support
|
|
Hlog
|
Support
|
|
Portrait Mode
|
Support
|
|
Night mode
|
Support
|
|
CPU power management
|
Support
|
|
short video mode
|
Match the Tiktok' s best resolution,
bit rate and compression rate.the length of each video should not exceed 5 minutes
|
|
Film storage method
|
Built-in eMMC 64G
SD Cardat least U3 or Class1016G/32G/64G/128G
|
|
Firmware upgrade
|
App online upgrade
|
|
WIRELESS TRANSMISSION SYSTEM
|
|
|
mage transmission solution
|
SyncLeas 4.0
|
|
mage transmission wideband
|
20Mbps
|
|
lmage transmission delay
|
Within 200m
|
|
Antenna
|
Built-in dual antenna
|
|

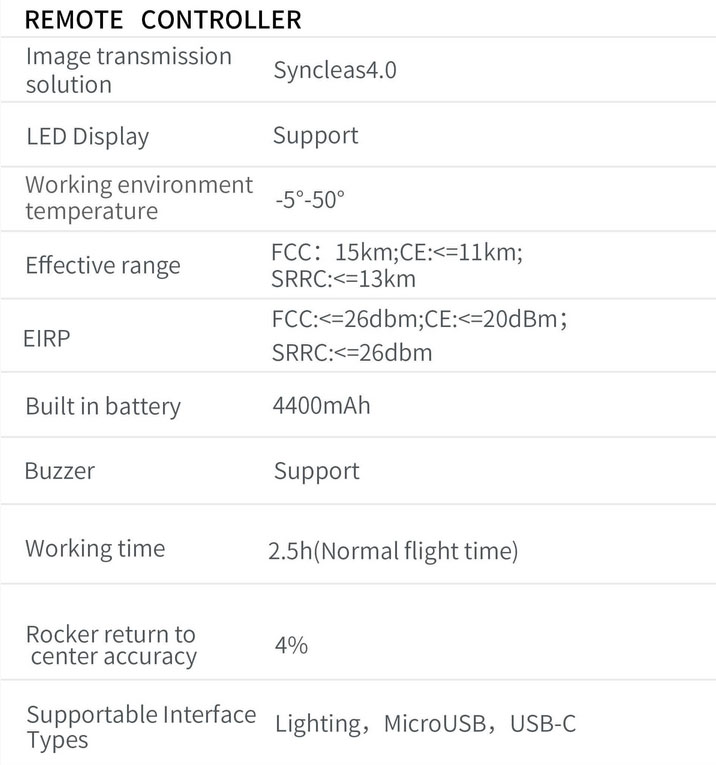

Default controller
|
HT18MF
|
|
EIRP
|
FCC:<=26dBm;CE:<=20dBm;SRRC:<=26dBm
|
|
Wireless transmission range
|
FCC:15km;CE:<=11km;SRRC:<=13km
|
|
GIMBAL
|
|
|
Gimbal model
|
H717DR
|
|
Degree of freedom
|
The fourth generation of mechanical
three-axis stabilization gimbal technology
|
|
Maximum pitch Speed
|
120°/s
|
|
Rotation range
|
Pitch:-111.1°~+45°
Roll:±35°
Yaw:±35°
|
|
Angle Jitter
|
±0.001°
|
|
FLIGHT CONTROLLER
|
|
|
Flight controller version
|
Fourth-generation flight controller
|
|
Basic flight mode
|
Sports mode/Normal mode/Movie mode
|
|
Altitude hold
|
Tof, barometer
|
|
Fixed-point function
|
Vision optical flow, GPS
|
|
Unlock/lock
|
Outer- eight unlock/lock
|
|
One-click take-off anding
|
APP support, remote control does not support
|
|
Out of control protection
|
Support
|
|
Low battery return
|
Support
|
|
Home recognition
(Search the drone apron)
|
Support
|
|
Vision tracking
|
Third-generation tracking technology
(ATVT 3.0)
|
|
Waypoint flight
|
Support
|
|
Flying around
|
Support
|
|
Ray flight
|
Support
|
|
Time-lapse photography
|
Support
|
|
Blockbuster mode
|
Support
|
|
Motor stall protection
|
Support
|
|
Firmware upgrade
|
App online upgrade
|
