HUBSAN ACE PRO Standard version RC Drone Details review
HUBSAN ACE PRO Brand New series
Brand New Drones State of the Art Technology
New HUBSAN ACE Series Launch
Brand New Drones, State of the Art Technology Ultra-Clear 4K Video, Aerial Photography Adventure Affordable Drone, Display Fantastic Fly arts
1/1.3 CMOS
1/1.3 inch CMOS sensor
4K/30fps f/1.85 super large aperture and 2.4μm super large pixel
Enjoy sharing video online easily
1080P syncleas 3 digital image transmission system
SyncLeas3.0 upgrades the adaptive spectrum sensing function, the intelligent frequency modulation algorithm effectively avoids interference frequency points, and the channel coding algorithm adopts the LDPC code used in deep space communication, which has super error correction capabilities. It further ensure the reliability of image transmission. The aircraft image transmission bandwidth can reach up to 20Mbps, and the image quality and details of the image transmission are increased by 400%. Whether in the city or in the wilderness, you can enjoy a stable and smooth drone control experience.
10km HD image transmission
ACE PRO comes SyncLeas3.0 image transmission system, the distance is up to 10km which broadens our horizons and will help us roam in wild.
3 axis stable gimbal
Stable aerial images are digital currency for many. profit from the HUBSAN new Technology three-axis high performance gimbals. Enrich your aerial photography, even high-speed flight can also record silky smooth videos.
Powerful, maximum level 8 wind resistance
The fastest flight speed ofthe ACE PRO canreach16m/s, profiting from the third-generation self-developed flight control algorithm and excellent electromechanical power efficiency. In the sport mode,
ACE PRO offers level 7 wind resistance, and in wind resistance mode, ACE PRO offers level8 wind resistance so you can fly worry free in high winds.
HUBSAN Third generation(ATVT3.0)Visual Tracking
The ACE PRO visual tracking mode adopts the third-generation intelligent tracking algorithm (ATVT 3.0). The visual tracking ability has been significantly improved on the basis of ATVT 2.0.The upgrad edversion of the neural network acceleration engine cooperates with the upgraded version of the Al pattern matching and detection algorithm. Greatly improves the tracking accuracy and significantly reduce the tracking delay. In the tracking mode, the drone can automatically match and frame common objects such as people, bicycles, and cars, which greatly facilitates the control experience in the tracking mode.
Intelligent Battery
ACE PRO battery uses 3s lithium polymer battery, all batteries are equipped with intelligent battery protection and management unit, which implements safety while achieving high-precision estimation and statistics on battery power, safety protection circuit then combined with a thorough power protection strategy and power on/off control algorithm, to greatly enhance safety of the drone and battery.
Maximum flight time of 35 minutes
ACE PRP offer 35 minutes of flight endurance in a windless environment
Upgraded HUBSAN third-generation FC, more stable hover and a much smoother flight
HUBSAN ACE PRO creatively adopts constant temperature and altitude sensor technology to enhance the reliability of altitudedata, while using Tof and barometer to fix the height, vision and GPS to fixthe point, and combining with the third generation of flight control digital fusion technology, which obviously enhances the hovering stability of the aircraft.
Three direction obstacle avoidance
ACE PRO comes with advanced 3D space perception algorithms enable the camera to capture more than 600K space feature points with depth extraction and calculation reaching 15 meters of cognitive distance.
Support memory card type
Built-in eMMC 64GmicroSD,U3 or Class1016G/32G/64G/128G
19 smart modes,casy to get started,can take of and land with one key, quick and easy movie-making
Live streaming
Breaking through the traditional space limitations, inX-HUBSAN2.0 live streaming in the airand share a more magnificent picture, showing a completely different perspective.
Active Tracking mode
The drone can automatically match and frame common objects such as people, bicycles, and cars, which greatly facilitates shooting in active tracking mode.
Zoom
Support 6x zoom, to capture every detail during the flight.
MULTI-SMART MODE
Support manual adjustment of parameters, giving creators more creative space
Light and Portable
Foldable,weight 543g, excellent portability, best partner for travel and outdoor sports
AIRCRAFT
|
HUBSAN ACE PRO
|
Color
|
Grey
|

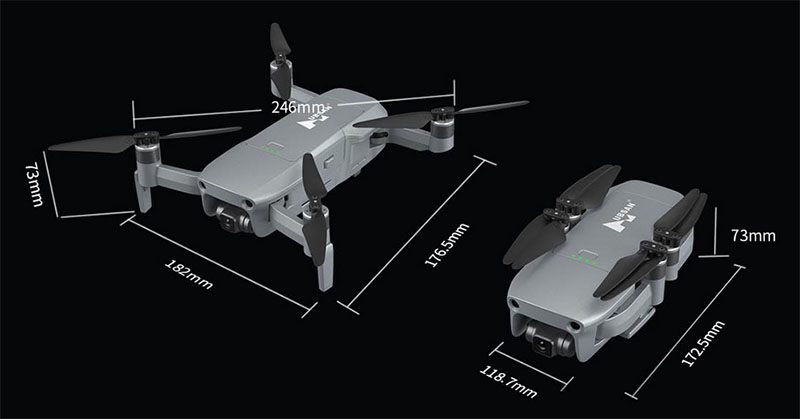

Size
|
Expand:182*176.5*73mm
Folding:118.7*172.5*73mm
|
Diagonal wheelbase
|
246mm
|
Maximum current
|
34A
|
Take off weight
|
543g
|
Hover accuracy
|
Indoor: vertical±0.1m, horizontal±0.1m
Outdoor: height<7m, vertical<Height*0.02m
Horizontal<Height*0.02m
Height>7m Vertical±0.1m
Horizontal±0.5m
|
Maximum
ascending velocity
|
3m/s(N) 4m/s(S) 1m/s(F)
|
Maximum
descending velocity
|
1.5m/s(N) 3m/s(S) 1m/s(F)
|
Maximum horizontal
flight speed
|
Normal mode:8m/s(N, No wind at sea level)
Sports mode:16m/s(S, No wind at sea level)
Movie mode:1m/s(S, No wind at sea level)
|
Maximum take-off
altitude
|
5000 meters
|
Maximum anti-wind
capability
|
Grade 8 wind(16m/s)
|
Maximum tilt angle
|
30° (S) 20° (N) 20° (F)
|
Global Position
|
GPS/GLONASS,BeiDou
|
Flight duration
|
Hovering for 33 minutes
(Windless,measured in 2~4 meters hovering)
Slow flight time 35 minutes
(8m/s uniform flight)
|
POWER SYSTEM
|
Folding propeller diameter 143mm
|
Propeller
|
|
ESC
|
Digital ESC: Brushless 20A x4
|
BATTERY
|
|
Category
|
Li-ion battery 3S |
Capacity
|
3800mAh
|
Nominal voltage
|
11.4V
|
Charging voltage limitation
|
13.05V
|
Discharge limitation
|
8C
|
Charging time
|
90 minutes
|
Battery weight
|
233g
|
Working temperature
|
-5℃~40℃
|
Charging environment temperature
|
0℃~40℃
|
Smart battery balance
|
Support
|
Smart battery
|
Support
|
Smart Charging head
|
Support
|
Battery Smart buckle
|
Support
|
Automatic discharge
|
Support
|
Hibernation Mode
|
Support
|
CAMERA
|
|
CMOS Image sensor
|
1/1.3 inch CMOS sensor
2.4um mixed large pixel
|
Lens specifications
|
FOV 84°
Aperture f/1.85
EFL:6.8mm
Focus point 5m to infinity
Distortion<1.5%
|
Maximum video encoding capacity
|
4K@30fps
|
Video resolution
|
4K:3840×2160@30fps
2.7K:2720×1530@30fps
FHD:1920×1080@30/60fps
|
Shutter speed
|
3-1/8000s
|
Hlog
|
Support
|
HDR
|
Support
|
Portrait Mode
|
Support
|
Night mode
|
Support
|
Video bitrate
|
100Mbps-200Mbps
|
Photo format
|
JPEG、DNG
|
Video format
|
MP4 (H.265/HEVC)
|
Firmware upgrade
|
App online upgrade
|
Support memory card type
|
Built-in eMMC 64G microSD,U3 or Class1016G/32G/64G/128G
|
COMMUNICATION
|
|
Wireless transmission solution
|
SyncLeas 3
|
Transmission delay
|
Within 200ms
|
wireless transmission distance
|
FCC:10km CE:<= 6km; SRRC:<=10km
|
Antenna position
|
forearm support foot
|
band mode
|
frequency button
|
Default remote
|
HT018F
|
REMOTE CONTROLLER
|
|
Wireless transmission solution
|
SyncLeas 3
|
Highlight LED display
|
Support
|
Working temperature
|
-5°-50°
|
Effective range
|
FCC:10km; CE:6km;SRRC:10km
|
Built-in battery
|
4400mAh
|
Buzzer
|
Support
|
Supportable mobile system
|
Android,iOS
|
Continuous working time
|
2.5h(Normal flight time)
|
Supportable interface type
|
Lighting,MicroUSB, USB-typeC
|
FLIGHT CONTROLLER
|
|
Flight controller version
|
Third-generation flight controller
|
Basic flight mode
|
wind resistance mode/Sports mode/Normal mode/Movie mode
|
Altitude hold
|
Tof, barometer
|
Fixed-point function
|
Vision optical flow,GPS
|
Unlock/lock
|
Outer- eight unlock/lock
|
Fill light
|
Support 0.5m-5m low light environment to automatically turn on the light
|
Out of control protection
|
Support
|
Home recognition
(Search the drone apron)
|
Support
|
Vision tracking
|
Third-generation tracking technology(ATVT 3.0)
|
Waypoint flight
|
Support
|
Flying around
|
Support
|
Time-lapse photography
|
Support
|
Intelligent battery
|
Power Management, Overcurrent Protection,
Over-discharge Protection,
Overcharge Protection,Balanced Charging,
Auto-Discharging Protection
|
Low battery protection
|
automatically return to home and land on low battery
|
ESC
|
self-developed ESC, digital PWM
|
Motor stall protection
|
Support
|
PERCEPTION
|
|
Forward
|
Forward Vision Precision Measurement Range
0.5m-12m, Deviationvalue <0.5m,Detectable Range>15m
|
Backward
|
Backward Vision Precision Measurement Range
0.5m-9m, Deviation value <0.5m,Detectable Range>12m
|
Downward
|
Downward Vision, Tof Precision Measurement
Range:0.3m-5m, Deviation value <0.1m
|
APP
|
|
APP
|
X-Hubsan2
|
Mobile device
|
IOS 10.0 or higher
Android 6.0 or higher
|
HUBSAN ACE PRO Standard version FAQ
1.The mobile device and remote control cannot be connected
(1) Check whether the status of the APP control signal icon has changed
(2) For USB Settings on android phones, check out "Android phone connection
tutorial"
2. Aircraft ID not available.
(1) Restart the drone, remote control and X-HUBSAN 2.0 APP
(2) Update the aircraft firmware
(3) Check whether the LED next to TF card slot of the drone is on in red, if it
flashing, means the aircraft function is abnormal
3. FPV transmission freezing, gets stuck or easy to disconnect
(1) Adjust the antenna Angle and point vertical side of the antennas to the
aircraft, without anything blocking between antennas
(2) Change the flight site, please do not fly near tall buildings, or near signal tower
(3) Update the latest firmware
4.Abnormal aircraft hovering
(1) Change the flight site, please do not fly near tall buildings and signal towers
(2) Do the compass calibration and horizontal calibration
(3) Wind is too strong to affect the flight
(4) If the aircraft are indoors, it is recommended to move to the outside for flight
5. Aircraft GPS accuracy is not precise or cannot pass the GPS accuracy test
(1) in the open area of the outdoor with GPS over 6 satellite
(2) Walk around near the aircraft
(3) Replace the mobile device
28
6.The battery cannot charge
Re-plug the charger and battery
7. short flight times
Battery overcharge or high temperature environment can easily lead to
reduction of battery life, it is recommended to keep the remaining 60% or
so, full charge again before use
8. The tilt Angle of the gimbal is too large or the gimbal show abnormal
behavior
(1) Restart the aircraft and re-calibrate the gimbal
(2) Check on the APP to see whether the gimbal status is normal
9. Gimbal initialization fails
Before starting the aircraft, take off the protective cover of the gimbal and
make sure nothing blocks gimbal movement.
10.The picture is not clear
(1) Check whether the lens protective film is peeled off
(2) Please shooting in a environment with good lighting
(3) Shooting parameters setting in camera Settings of APP
(4) Video source files are saved in TF card files with suffix AA.
11. Lens fogging
(1) humid climate causes lens fogginess, change aircraft storage location
(2)Place some desiccant in the protective cover of the gimbal when
storing
12. Picture or video is lost
(1) Perform completing recording operation after recording video,
otherwise it may lead to video damage or loss
(2) Check whether the TF card is damaged
