Hubsan ZINO MINI PRO standard version RC Drone Details review
ZINO MINI PRO standard version
The world's first drone withobstacle avoidance under 250g
- 1/1.3 CMOS
- 1080P 30fps Video Transmission
- Weight 249g
- Max flight time 40 minutes
- 10 km range
- 3 direction obstacle avoidance
ZINO MINI PRO

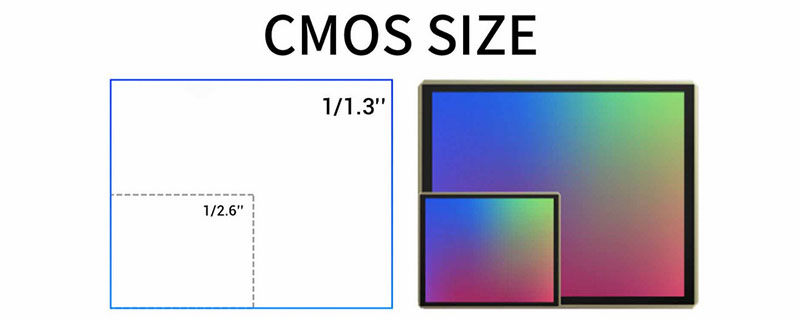

1/1.3 inch CMOS sensor
4K/30fps
up to 200Mbps video bitrate
f/1.85 super large aperture and 2.4μm super large pixel
built-in memory(64G/128G)
Enjoy sharing video online easily
Night Mode
A deep algorithm of image denoising optimizes your low-light shots
Imaging Quality
ZINO MINI PRO
With a 1/1.3 inch CMOS sensor support smooth 4K/30fps video
H.265/HEVC 200Mbps,built-in eMMC(64G/128G)
enable you to share your video to media easily
HDR
Capture higher dynamic range and colors, optimizing your low-light shots
Three direction obstacle avoidance
The world' s first drone with vision obstacle avoidance under 250g with advanced 3D space perception algorithms enable the camera to capture more than 600K space feature points with depth extraction and calculation reaching 15 meters of cognitive distance.
Optical-flow night light
Optical-flow night light ensures your hovering performance in low-light circumstances
Al tracking Mode
ZINO MINI PRO applying our newest Al tracking algorithms(ATVT 3.0) with a huge improvement in trackinglatency and tracking accuracy can locate the figure and animals or moving vehicles easily and automatically
Intelligent Batteries
Accuracy and safety
Equipped with intelligent battery management unit to caculate power accurately
Built-in safety protection circuit combined with precise power protection strategy and on-off control algorithm to make drone flight high safety
Intelligent Battery Manager
It can accommodate four batteries in sequence, and can also be used as a mobile power source to charge devices such as remote controls or cell phones.
Flight Time
Max Flight Time 40 mins (measured while flying at 6 m/s in windless conditions)
Max Flight Time 37mins hovering time in windless environment
Video Transmission
ZINO MINI PRO10KM1080P/30fps 20Mbps
ZINO MINI PRO Hubsan Syncleas.3.0 1080P/30fps 20Mbps 10 KM
Portable & Legal
With only 249g no resgistration required
Built-in eMMC(64G/128G)
ZINO MINI PRO
Built-in eMMC(64G/128G) enable you to share your video to media easily
Support Youtube live broadcast
Aircraft
|
Dimensions
|
Unfolded: 202.54x161.2x61.6mm
Folded: 137x88x61.6mm
Folded with Propeller: 137x94x61.6mm
|
|
Diagonal Wheelbase
|
220mm
|
|
Color
|
Gray
|
|
Takeoff Weight(with battery)
|
Standard:249g(Europe and America), 200g (Japan)
|
|
Hover Accuracy
|
Vertical: ± 0.1m (when the visual positioning is working normally)
± 0.5m (when GPS is working normally)
Level: ± 0.3m (when the visual positioning is working normally)
± 1.5m (when GPS is working normally)
|
|
Max Rotational Speed
|
130°/s (S), 60°/s (N), 25°/s (F)
|
|
Max Ascension Speed
|
3m/s (N), 4m/s (S), 2m/s (F)
|
|
Max Descent Speed
|
3m/s (N), 3.5m/s (S), 1.5m/s (F)
|
|
Maximum Horizontal Flying Speed (Windless at Sea Level)
|
10m/s (N)
16m/s (S)
|
|
Maximum Take-off Altitude
|
4000m
|
|
Max Wind Speed Resistance
|
5-level (8.5-10.5m/s)
|
|
Max Tilt Angle
|
40°(S), 25°(N), 15°(F)
|
|
Positioning
|
GPS + GLONASS
|
|
Max Flying Time
|
40 minutes(measured while flying at 25km/h in windless conditions)
|
Power System
|
Maximum Working Current
|
16A
|
|
Propeller
|
Model: Foldable & Diameter 125.6mm
Color: Black
|
|
Motor
|
Outward Rotation Brushless Motor
1503, KV2820
|
|
ESC
|
Digital ESC Brushless 20A x 4
|
Camera
|
CMOS Image Sensor
|
1/1.3inch CMOS Sensor
2.4um Mixed Large Pixel
48 million Effective Pixels
|
|
Lens Specifications
|
FOV 84°
Aperture f/1.85
EFL: 6.8mm
Focus Point: 0.5m to ∞
Distortion: <1.5%
|
|
Maximum Photo Size
|
8000 x 6000
|
|
Maximum Video Encoding
|
4K@30fps
|
|
Video Resolution
|
4K: 3840 x 2160 @ 30fps
2.7K: 2720 x 1530 @ 30/60fps
FHD: 1920 x 1080 @ 30/60fps
|
|
Electronic Shutter Speed
|
3-1/8000s
|
|
Video Bitrate
|
100Mbps-200Mbps
|
|
Supported File Systems
|
FAT32 (≤32 GB)
exFAT (>32 GB)
|
|
Photo Format
|
JPEG
|
|
Video Format
|
MP4 (H.265/HEVC)
|
|
Firmware Upgrade
|
APP Online Upgrade
|
|
Supported SD Cards
|
MicroSD Card, U3 or Class10 above
16G/32G/64G/128G
|
Image Transmission
|
Image Transmission System
|
SyncLeas 3
|
|
Working Band
|
5.725-5.850 GHz
|
|
MaxTransmission Distance
|
FCC: 10KM
CE: 6KM; SRRC: 6KM
|
|
Average Vit Rate
|
20 Mbps
|
|
Transmission Delay
|
<=200ms
|
|
Antenna
|
Built-in Dual Antenna
|
|
Transmission Power (EIRP)
|
FCC: <=26dbm; CE: <=20dbm; SRRC: <=20dbm
|
|
Max Video Bitrate
|
40 Mbps
|
|
Remote Control
|
HT018Y
|
Gimbal
|
Gimbal
|
HY817D
|
|
Stabilization
|
3-Axis (tilt, roll, pan)
|
|
Degree of Freedom
|
Triaxial
|
|
Max Pitch Speed
|
120°/s
|
|
Mechanical Range
|
Pitch: -120° to 45°
Roll: ± 35°
Yaw: ± 35°
|
|
Damping Method
|
Three-dimensional Shock Absorption
|
Flight Controller
|
FC Version
|
Self-developed Third-generation Flight Controller
|
|
Basic Flight Mode
|
Sports Mode / Normal Mode / Movie Mode
|
|
Altitude Hold Mode
|
Tof, Barometer
|
|
Fixed-point
|
Visual Optical Flow, GPS
|
|
Unlock/Lock
|
Outer "Eight" Unlock/Lock
|
|
One Key Take-off/Landing
|
APP Supported，Remote Control Unsupported
|
|
Headless Mode
|
√ （Yes）
|
|
Out of Control Protection
|
√ （Yes）
|
|
Low Battery Return
|
√ （Yes）
|
|
Home Visual Recognition
(search for drone apron)
|
√ （Yes）
|
|
Visual Tracking
|
Third-generation Tracking Technology (ATVT 3.0)
|
|
Waypoint Flight
|
√ （Yes）
|
|
Flying Around
|
√ （Yes）
|
|
Ray Flight
|
√ （Yes）
|
|
Time-lapse Photography
|
TBD
|
|
Motor Stall Protection
|
√ （Yes）
|
|
Firmware Upgrade
|
APP Online Upgrade
|
Sensing System
|
Forward
|
Binocular Visual Perception,Precision Measurement Distance <12M
Fluctuate <0.5M, Perception Distance >15M
|
|
Backward
|
Binocular Visual Perception,Precision Measurement Distance <12M
Fluctuate <0.5M, Perception Distance >15M
|
|
Downward
|
Monocular Optical Flow, Tof Ranging
Effective Ranging Range 0.3-5M，Fluctuate <0.1M
|
Remote Control
|
Color
|
Gary
|
|
Operating Frequency
|
5.725-5.850 GHz
|
|
Display
|
Highlight LED Display
|
|
Operating Environment Temperature
|
-10 Deg.C- 60 Deg.C
|
|
Maximum Effective Signal Distance
|
5.8Ghz FCC:10KM
CE: 6KM; SRRC: 6KM
|
|
Equivalent Isotropic Radiated Power
|
FCC: <=26dBm; CE: <=20dBm;
SRRC: <=20dBm
|
|
Built-In Battery
|
3350mAh
|
|
Mode
|
Mode 2(Left Hand Throttle)
|
|
Buzzer
|
Support
|
|
Support Mobile System
|
Android, iOS
|
|
Working Time
|
2.5h (Normal Flight Time)
|
|
Rocker Back to Center Accuracy
|
4%
|
|
Interfaces Type
|
Lighting / Micro USB / Type-C
|
Battery
|
Battery Type
|
Lithium Battery
|
|
Capacity
|
3000 mAh
|
|
Standard Voltage
|
3.6x2=7.2V
|
|
Charging Limit Voltage
|
7.25V
|
|
Discharge Rate
|
8C
|
|
Charging Time
|
150 minutes
|
|
Weight
|
101.84g
|
|
Working Environment Temperature
|
0 Deg.C- 50 Deg.C
|
|
Charging Environment Temperature
|
0 Deg.C- 40 Deg.C
|
|
Smart Battery Balance
|
√
|
|
Intelligent Power Management
|
√
|
|
Automatic Discharge Protection
|
√
|
APP
|
APP Name
|
X-Hubsan
|
Mobile Device
|
Requirements
|
iOS 10.0 or higher
Android 6.0 Or higher
|
ZINO MINI PRO standard version FAQ
1.The mobile device and remote control cannot be connected
(1) Check whether the status of the APP control signal icon has changed
(2) For USB Settings on android phones, check out "Android phone connection tutorial"
2. FPV transmission freezing, gets stuck or easy to disconnect
(1) Adjust the antenna Angle and point vertical side of the antennas to the aircraft, without anything blocking between antennas
(2) Change the flight site, please do not fly near tall buildings, or near signal tower
(3) Update the latest firmware
3.Abnormal aircraft hovering
(1) Change the flight site, please do not fly near tall buildings and signal towers
(2) Do the compass calibration and horizontal calibration
(3) Wind is too strong to affect the flight
(4) If the aircraft are indoors, it is recommended to move to the outside for flight
4. Aircraft GPS accuracy is not precise or cannot pass the GPS accuracy test
(1) in the open area of the outdoor with GPS over 6 satellite
(2) Walk around near the aircraft
(3) Replace the mobile device
5.The battery cannot charge
Re-plug the charger and battery
6. short flight times
Battery overcharge or high temperature environment can easily lead to reduction of battery life, it is recommended to keep the remaining 60% or so, full charge again before use
7. The tilt Angle of the gimbal is too large or the gimbal show abnormal behavior
(1) Restart the aircraft and re-calibrate the gimbal
(2) Check on the APP to see whether the gimbal status is normal
8. Gimbal initialization fails
Before starting the aircraft, take off the protective cover of the gimbal and make sure nothing blocks gimbal movement.
9.The picture is not clear
(1) Check whether the lens protective film is peeled off
(2) Please shooting in a environment with good lighting
(3) Shooting parameters setting in camera Settings of APP
10. Lens fogging
(1) humid climate causes lens fogginess, change aircraft storage location
(2)Place some desiccant in the protective cover of the gimbal when storing
11. Picture or video is lost
Perform completing recording operation after recording video, otherwise it may lead to video damage or loss
