Camera: Video Recording Mode: 4K 3840X2160
Gimbal Stabilization: Single-axis 90°
The wide-angle lens, which made up of a number of optical lens elements, makes it possible for the camera to capture sharp and vivid images with expansive background.
Electronic Image Stabilization
Electronic Image Stabilization (EIS) is a highly effective method of compensating for hand jitter that manifests itself in distracting video shake during playback.
Adjust camera angle by remote controller
Camera angle can be remote controlled to pitch from -90°to 0°.
4K camera records more details
Support shooting 4K CMOS sensor and wide-angle lens, retain the most original details and make your creation much more inspirational.
Follow me
The aircraft's camera will lock on your mobile phone, when using this function, the aircraft will track you automatically and capture your movement with a particular aerial view. The camera lens will keep pointing at the mobile phone and remain constant distance to the mobile phone.
Optical flow positioning
The built-in optical flow sensor that gets the real-time optical flow information and makes integrating computations. Your aircraft will auto precise hovering with hands-free, and you can focus on your creative shooting.
Point of Interest
Set a specific building, object or position as your point of interest. With Point of Interest, your aircraft will continuously circle clockwise around the preset point. The point of interest is set at 10 meters forward the aircraft by default. To change the point, please click “Setting” —“Flight Radius” to reset.
TapFly
In the Waypoint Flight Mode, you can just focus on composing, B20 EIS will fly to the target or fly in the direction you tapped on the screen, and changethe flight paths smoothly if you re-planed the track on the screen again.
Powerful brushless motor
1306 2750kv Brushless Motor, the most cost - efficient & excellent quality brushless motor among the brushless motor lines. Maximum upward lift 230g. Flying the B20 EIS is just a piece of cake.
Module-designed Li-polymer battery
It gives you a longer flight experience. 22-min max flight time with the 7.6V 3400 mAh battery.
4K Wifi Camera Works Perfectly with MJX APP "M RC PRO"
The onboard 4K Wifi camera lets you see what your aircraft see, idea for framing a spot or simply to look around and admires your surroundings after the camera linked to the APP "M RC PRO".
Smart remote controller alarm function
The transmitter buzzer receiving the voltage status of the aircraft will send out beep sound once the aircraft is in low volatage. So, your aircraft is always under control. The transmitter buzzer will send out beep sounds once the remote control signal is weak or interferenced. Your flight is always safe.
LCD screen
Assists the drone to fly in any flight environment
Left / Right throttle control switch mode
Item Name |
Specification |
Drone |
Brand: MJX
Item Name: B20 ELS
Mode: Mode 2 (Left Hand Mode)
Wheelbase: 280mm
Quadcopter Size: 380*380*125mm
Quadcopter Weight: 543g
Max. Ascent Speed: 3m/s
Max. Descent Speed: 2m/s
Max. Flying Speed: 40km/h
Max Flying Time: 22mins
Max. Limit Height: 120m
Max. Flying Distance: about 600m
Wind resistance level: <4 level
Hovering Accuracy Range:
Vertical ±0.3m,Horizontal ±0.3m (Indoor routine environment, within 3
meters height)
Vertical ±0.3m,Horizontal ±0.5m(Outdoor 3 meters above normal environment)
Motor: 2204 1620KV Brushless Motor
ESC: 6A Brushless
Built-in Positioning Sensor: GPS/Optical Flow/Barometer
EIRP: 20dbm |
Remote Controller |
Operating Frequency: 2.4G
Maximum Remote Control Distance: 600m
Transmitter Battery: 1.5V 2 X AA(Not Included)
Using Time: About 12h |
Camera |
Item Name: 4K 5G Wifi Camera
APP: M RC PRO
Effective Pixels: 4K
Maximum Transmission Frame Rate: 720P@30FPS
Video Transmission System: 5G WiFi(802.11.ac)
Image Transmission Range: 450m
Lens Angle: 130°
Aperture: f/2.0
Focal Length: 2.8mm
Sensor: 1/3 inch CMOS
Local Video Frame Rate: 3840x2160@30fps 1080P@60fps
File system: FAT32
Shutter speed: 1/30s-1/10000s
ISO range:100 - 3200 for Video/Photo
Camera Adjustable Angle: 0° to -90°
Max Photo Resolution: 3840*2160
Max Video Resolution: 3840*2160
Gimbal: Uniaxial Gimbal
Supported SD Cards: Micro SD Card Class 10 And Above (Not included)
Max. Expansion: 128GB |
Battery |
Item Name: 7.6V 3400mAh Lipo Battery
Capacity: 3400mAh
Voltage: 7.6V
Battery Weight: 152g
Operating temperature:5℃ to 40℃
Flying Time: About 22mins
Charging Time: About 5h
Input: 5V/2-2.1A
Charging Type: Type-c Charging Cable |
Weight & Dimensions |
Product weight: 1250g
Package Size: 29*27.5*13.5cm
|

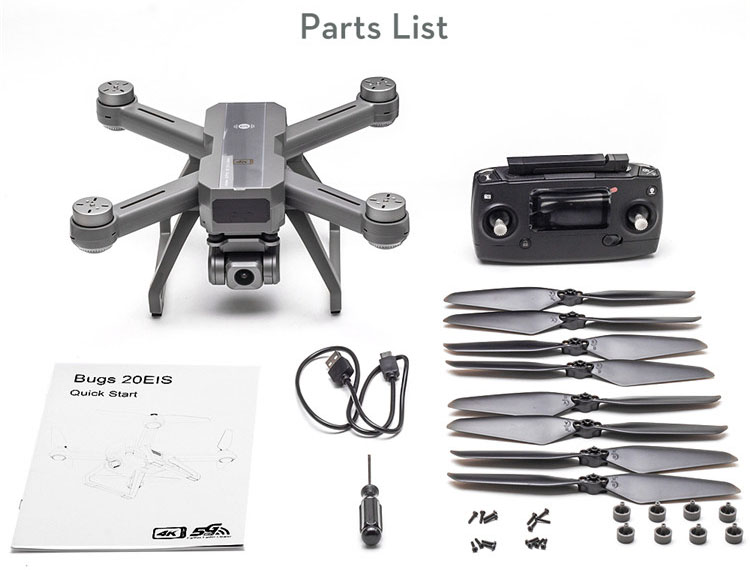

Package Included:
1X MJX B20 ELS Drone
1X Transmitter
1X 7.6V 3400mAh Battery
1X Charger
1X USB Cable
4X Propeller
1X Screwdriver
1X Manual
