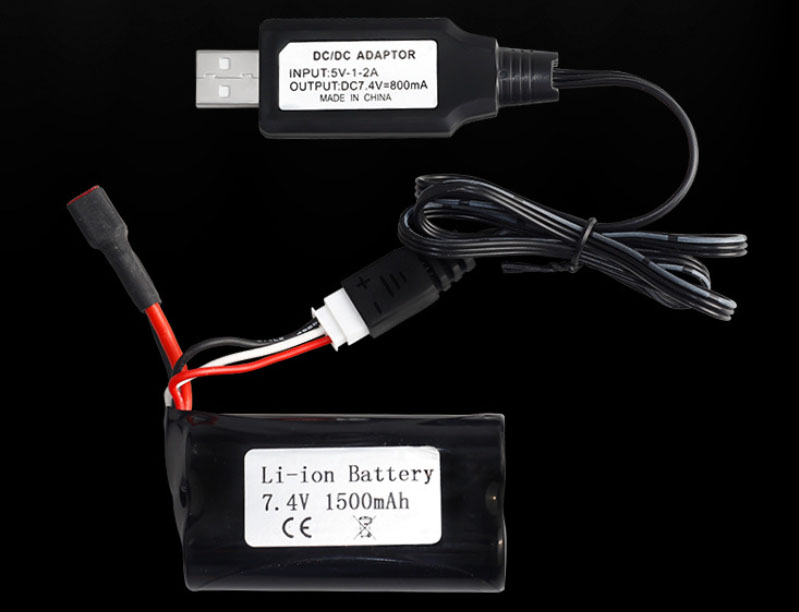

[Product Name]: 7.4V XH-3P Lithium Battery Pack Charging Cable
[Input parameters]: 5V 1-2A
[Output parameter]: 7.4V 800mA
[Standard voltage]: 7.4V

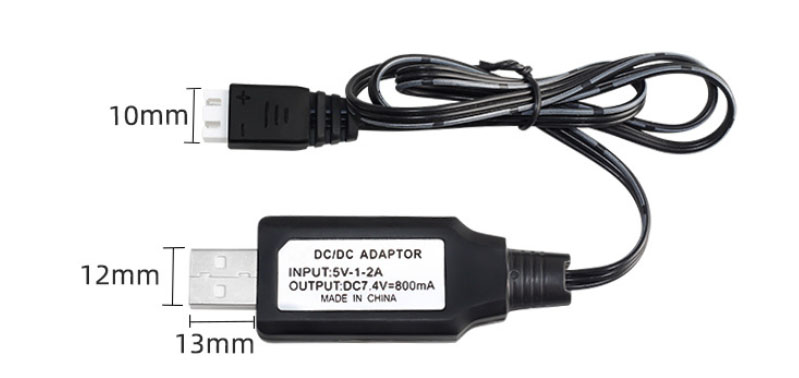

[Line length size]: 54cm (including plug)
[Net weight of product]: 17g
[Functional features]: Strong universality, LED indication for overcharge protection, overvoltage protection

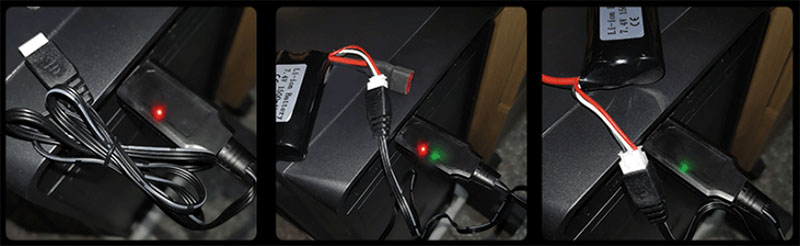

1. Connect the charging cable to the power supply, and the red light will stay on and the green light will flash 7-8 times before stopping, indicating normal power on.
2. When the lithium battery is connected for charging, the red light will light up and the green light will flash.
3. When the red light is off and the green light is constantly on, it indicates that the lithium battery is fully charged.
When charging 7.4V lithium battery pack, this charging cable can be connected to computer devices, phone adapters, and mobile power sources for charging.
This product was added to our catalog on Monday 21 August, 2023.
